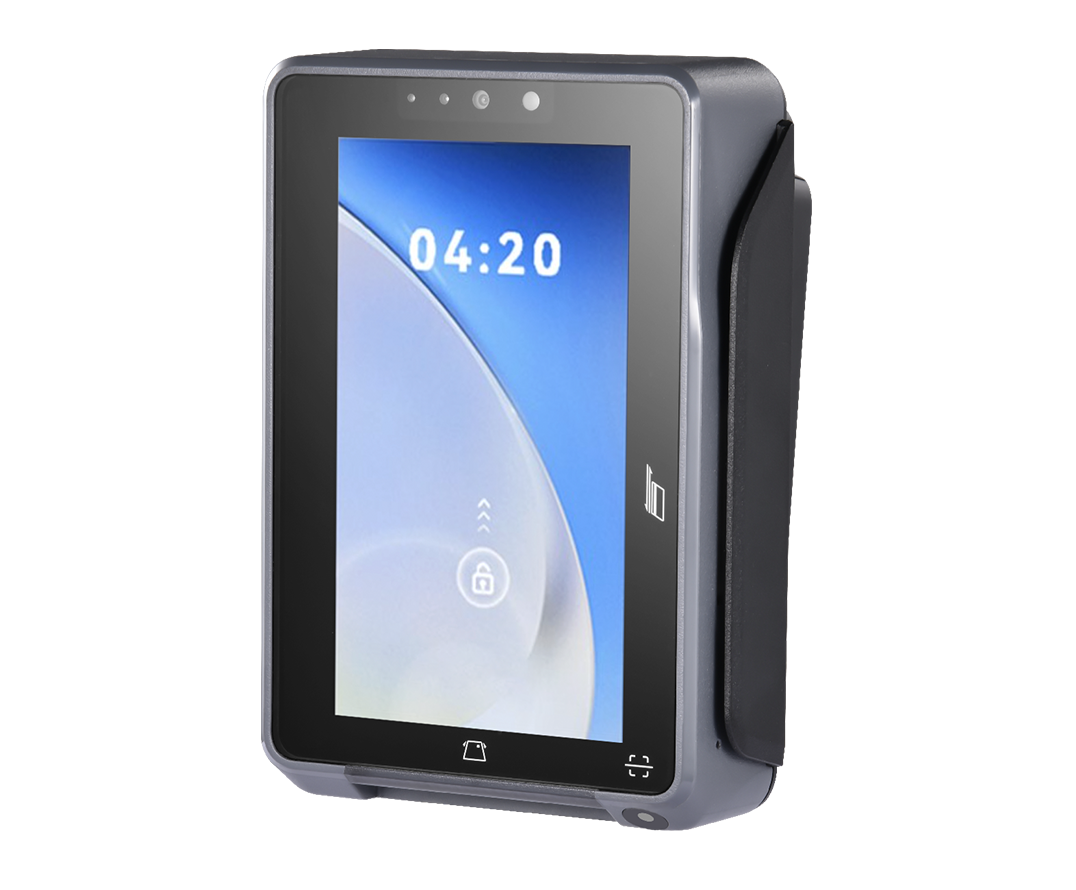

UN20

An Innovative Self-Service Experience

The Nexgo UN20 is a powerful all-in-one unattended payment solution, designed to handle high-demand environments with ease-combining rugged durability, advanced payment options, and seamless integration for vending, kiosks, and self-service applications.

Key Features

Android 10 smart payment platform
4″ capacitive multi-touch display for intuitive user interaction
Supports chip and contactless payments for fast and secure transactions
Software PIN pad with fixed PIN support
Compact, lightweight design suitable for integration into kiosks and machines
Front camera for scanning and customer interaction
4G, Wi-Fi and Bluetooth connectivity for reliable communication
GPS, GLONASS and BeiDou positioning support
Rechargeable battery for portable deployments
Optional integrated payment module base and charging base
Supports unattended deployment within automated payment environments

Specifications

Connectivity: USB-C, Ethernet, LTE
Operating Temp: -30°C to 70°C
Security: PCI PTS 6.x
Ingress Protection: IP65
Dimensions: Compact form factor

Why Chose UN20

Designed for Unattended Environments
Ideal for vending, kiosks and self-service applications
Flexible Payment Acceptance
Supports magstripe, chip, contactless and software PIN entry
Strong Integration Capability
Multiple interfaces including USB, LAN, RS232, MDB and HDMI
Built-In Scanning Functionality
Front and bottom cameras for barcode and QR code scanning
Rugged & Reliable Design
IP65 and IK09 rated for indoor and outdoor deployment

Multiple Payment Methods

Flexible Connectivity

Integrate seamlessly into your existing infrastructure.

Secure & Compliant

Protect your business and customers with advanced security.

Rugged & Reliable

Built to withstand tough environments and 24/7 use.

Customer Engagement

Enhance the payment experience and drive loyalty.

Technical Specifications

Electrical

OS

ANDROID 10

Processor

QUAD-CORE CORTEX-A53, 2.0GHZ

Communication

4G/3G/2G WI-FI, 802.11A/B/G/N, 2.4GHZ & 5GHZ BT4.X

Battery

DC: 12~48V(DIGITAL I/O, MDB SLAVE, MASTER & EXECUTIVE), RS232 AC: 19~30V(MDB MASTER & EXECUTIVE)

Certifications

PCL6.X, EMV L1&L2, EMV CL1, QPBOC L1, QUICKPASS, PAYPASS, PAYWAVE, TQM, JCB, DISCOVER, AMEX, IP65, IK09, ATEX, CE, ROHS, PTCRB

Positioning

GPS, GLONASS OR BEIDOU

Pin Pad

SOFTWARE PIN PAD / FIXED PIN SUPPORTED

Power

DC: 12~48V(DIGITAL I/O, MDB SLAVE, MASTER & EXECUTIVE), RS232 AC: 19~30V(MDB MASTER & EXECUTIVE)

Keys

1 RESET KEY, 2 VOLUME KEYS

Environmental

Operating Temperature

-20°C TO 70°C

Storage Temperature

-30°C TO 80°C

Relative Humidity

10% TO 95%

Waterproof And Dustproof

MATCH IP65 STANDARD

Mechanical

Dimensions

146 X 101 X 57MM (620G)

Memory

2GB RAM + 8GB ROM (MICRO SD CARD SUPPORTED, UP TO 128GB)

Display

4" (480 X 480) COLOR SCREEN, CAPACITIVE TOUCHSCREEN, MULTI-TOUCH

Cameras

FRONT: 2MP, FF / BOTTOM: 2MP, FF WITH FLASHLIGHT

Card Slots

1 X SD + 4 X SAM + 2 X SIM 1 X SD + 4 X SAM + 1 X ESIM 1 X SIM (OPTIONAL)
