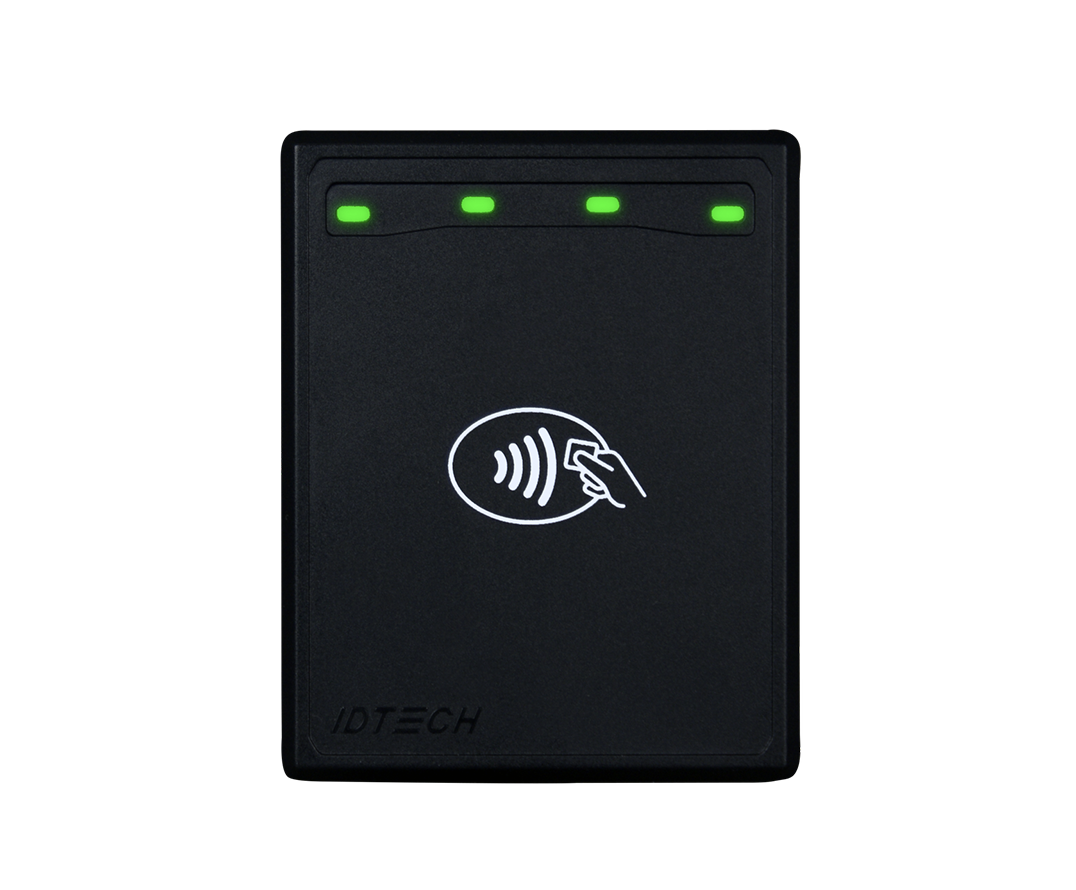

Kiosk V

Secure All-Weather Contactless Reader

The ID Tech Kiosk V is a robust, secure standalone contactless reader designed for unattended environments where fast, reliable tap-to-pay functionality is essential.

Ideal for ATMs, payment kiosks, ticketing and other self-service applications, it delivers secure contactless acceptance, mobile wallet support and outdoor-ready protection in a sleek standalone device built for both indoor and outdoor use.

Key Features

  • PCI PTS 6.X certified (SRED version only)
  • Supports the latest Visa, Mastercard, American Express& Discover L2 kernels & extensive international kernels
  • Supports major transit kernels like Visa, American Express, Discover & Interac Transit
  • Supports Apple VAS & Google Smart Tap, Mifare Suite & FeliCa
  • Contactless EMV L1 & L2 certified
  • Supports direct & remote key injection
  • Ruggedized, water resistant product made for indoor & outdoor use

Specifications

  • Connectivity: USB-C, Ethernet, LTE
  • Operating Temp: -30°C to 70°C
  • Security: PCI PTS 6.x
  • Ingress Protection: IP65
  • Dimensions: Compact form factor

Fast, secure tap-to-pay for unattended environments

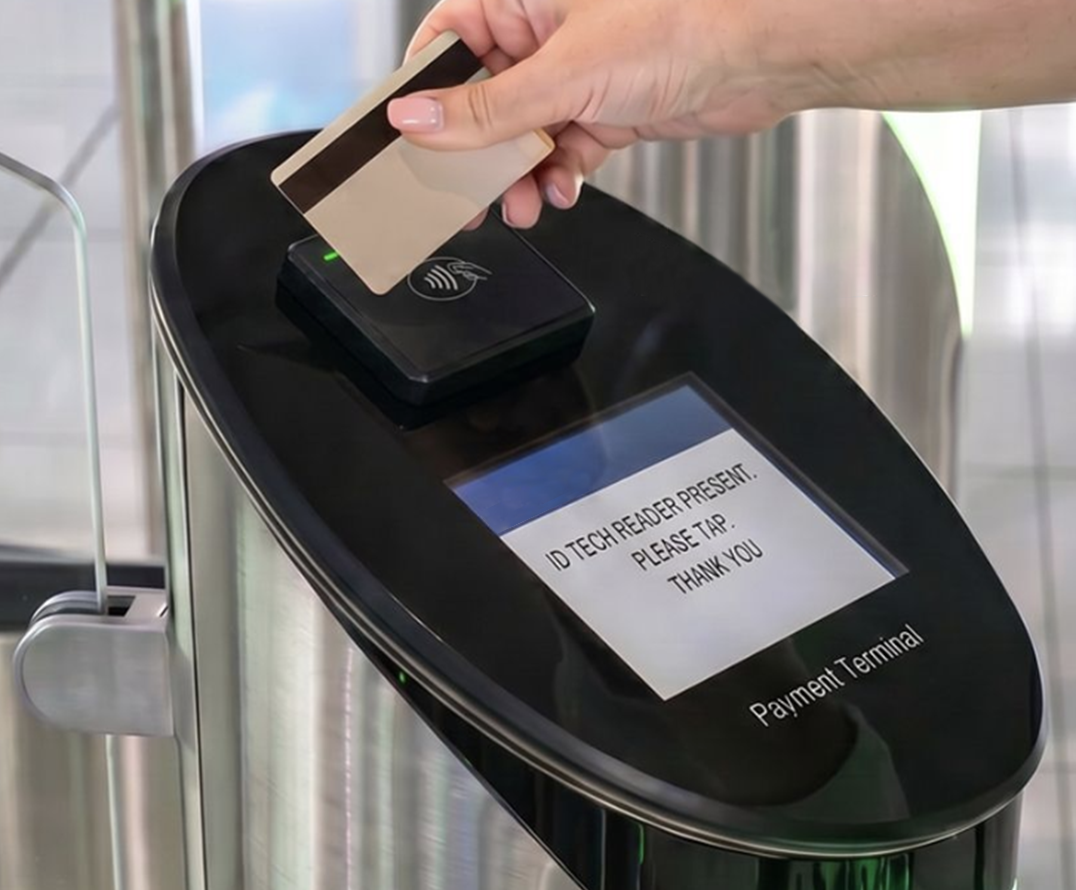

The Kiosk V is a compact, secure, and rugged contactless payment reader built for self-service and unattended environments like ATMs, parking pay stations, EV chargers and other kiosk applications. Its small form factor, weather-resistant design, and support for the latest contactless payment technologies provide a fast and seamless customer experience while maintaining strong security standards.

  • Contactless & Mobile Payments: Supports NFC tap payments including Apple Pay and Google Pay with the latest global kernels.
  • Secure & Certified: PCI PTS 6.X certified with strong encryption and key management.
  • Rugged & Weather-Ready: Built for outdoor and unattended use with IP65 ingress protection and wide temperature range.
  • Easy Integration: Multiple interfaces like BLE, RS-232, USB and UART make it simple to integrate into existing systems.

Multiple Payment Methods

Kiosk V
Group 5014

Flexible Connectivity

Integrate seamlessly into your existing infrastructure.

Vector

Secure & Compliant

Protect your business and customers with advanced security.

Group 5015

Rugged & Reliable

Built to withstand tough environments and 24/7 use.

Group 5016

Customer Engagement

Enhance the payment experience and drive loyalty.

Technical Specifications

Connectivity
BLE (OPTIONAL), RS232, TTL & USB
Encryption
AES, RSA, TDES & TRANSARMOR
Key Management
DUKPT
MTBF
500,000 HOURS
Power
5V VIA USB
Impact Rating
IK07
Ingress Protection Rating
IP65
Operating Humidity
MAXIMUM 95% (NON-CONDENSING)
Operating Temperature
-30°C TO 70°C (MAX CHANGE OF 10°C PER/HOUR)
Storage Temperature
-30°C TO 85°C (NON-CONDENSING)
Storage Temperature (Non-SRED)
-40°C TO 85°C (NON-CONDENSING)
Dimensions
75MM (H) X 60MM (W) X 11.2 MM (D)
Memory
FLASH 16 MB (EXTERNAL FLASH SIZE IS 16 MB)
Weight
1.76 OZ
