CT20P

Smart PIN Pad – Excellent Performance, Compact Design

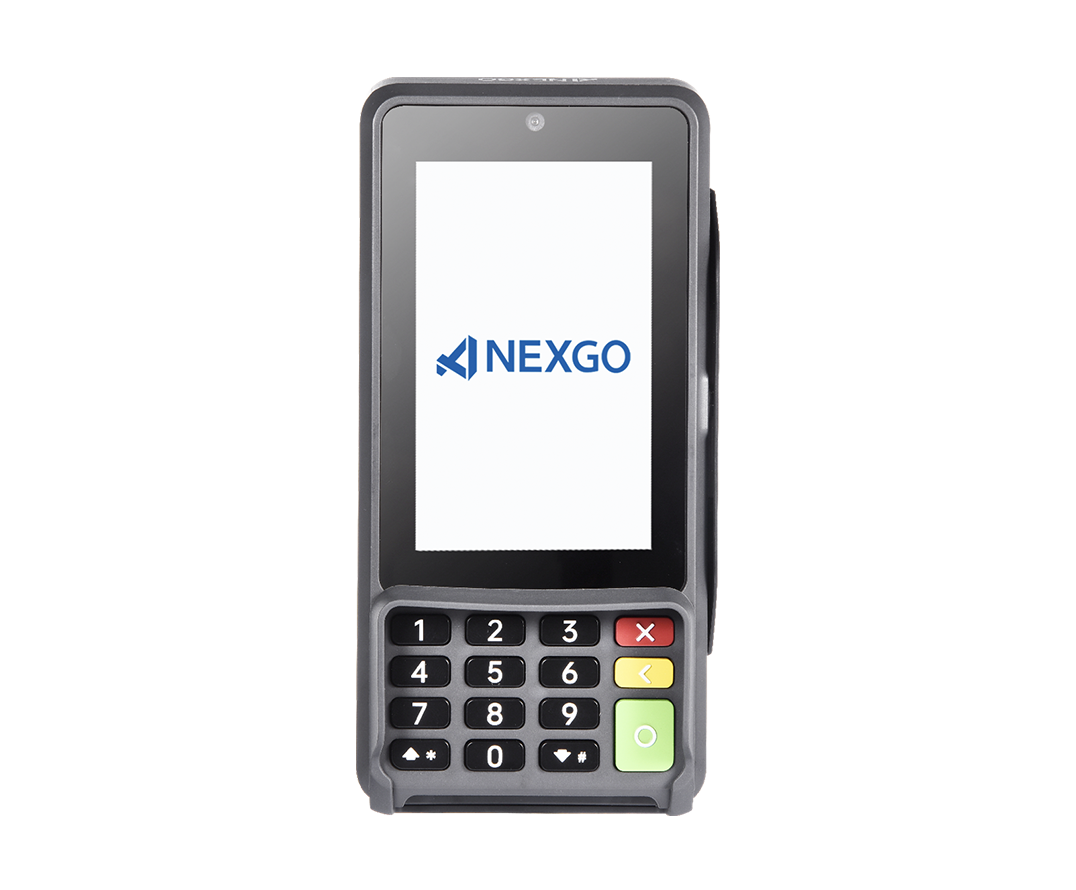

The NEXGO CT20P is a smart PIN Pad with a compact, sleek design built for retail checkout. Combining strong performance with a user-friendly form factor and an optional desktop stand, the CT20P is the modern, reliable companion to ECR-based point-of-sale systems.

Ideal for integrated retail, grocery, pharmacy and hospitality checkouts, the CT20P pairs an Android 11 quad-core processor with a multifunction cable for clean ECR integration and an optional POE accessory for network-powered deployments.

Key Features

4.0″ 480 x 800 IPS LCD capacitive touchscreen
Android 11 with quad-core Cortex-A53 2.0GHz processor
2GB RAM + 8GB ROM
Multifunction cable integrating RS232, LAN, USB and power
Optional POE accessory for network-powered installations
15-key physical keypad with removable privacy shield
Compact countertop form: 166 x 82 x 30mm
PCI 6.x and EMV L1 / CL1 certified

Specifications

Android 11
Quad-Core Cortex A53 2.0GHz Processor
4.0″ 480 x 800 IPS LCD Capacitive Touchscreen
Multifunction Cable (USB, LAN, RS232)
PCI 6.x, EMV L1, EMV CL1 Certified

Compact, Connected and Checkout-Ready

Purpose-built for clean ECR integration, the CT20P keeps checkout footprints small and wiring simple – with no compromise on security or speed

Clean ECR Integration: One multifunction cable handles RS232, LAN, USB and power.
Compact Footprint: 166 x 82 x 30mm fits any checkout environment.
Secure PIN Entry: 15-key physical keypad with removable privacy shield.
Flexible Power: DC 5V/2A standard with optional POE.

Multiple Payment Methods

Flexible Connectivity

Integrate seamlessly into your existing infrastructure.

Secure & Compliant

Protect your business and customers with advanced security.

Rugged & Reliable

Built to withstand tough environments and 24/7 use.

Customer Engagement

Enhance the payment experience and drive loyalty.

Technical Specifications

Electrical

BASED ON ANDROID 11

Processor

QUAD-CORE CORTEX A53, 2.0GHZ

Memory

2GB RAM + 8GB ROM

Adaptor

DC 5V / 2A (POE OPTIONAL)

Communication

LAN; WI-FI 802.11A/B/G/N/AC 2.4GHZ & 5GHZ; BT5.X

Certifications

PCI 6.X, EMV L1, EMV CL1, QUICKPASS, PAYPASS, PAYWAVE, TQM, JCB, DISCOVER, AMEX, FCC, CE, ROHS

Environmental

Operating Temperature

-10°C TO 45°C

Storage Temperature

-20°C TO 70°C

Relative Humidity

10% TO 95% (NON-CONDENSING)

Mechanical

Dimensions

166 X 82 X 30 MM

Display

4.0" 480 X 800 IPS LCD CAPACITIVE TOUCHSCREEN

Keypad

15 PHYSICAL KEYS (NUMERIC / FUNCTION); REMOVABLE PRIVACY SHIELD

Ports

MULTIFUNCTION CABLE (USB, LAN, RS232); KENSINGTON LOCK

Camera

FRONT 2MP
